high precision automatic dynamic weighing system/automatic weight sorting machine used for parcel express

FOB Reference Price:Get Latest Price
US $25,800-48,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
YDT
Condition:
New
After-sales Service Provided:
Engineers available to service machinery overseas
Type:
Slat Conveyor
Material:
Carbon steel
Name:
Dynamic weigher system
Structure:
belt conveyor
Width:
300mm/400mm/500mm/600mm
Length:
500mm/600mm/800mm/1000mm/1200mm
Function:
Cargo weighing, scanning and metering
Color:
customized
Packaging & Delivery
Port
SHANGHAI
Product Description


Description: A set of dynamic weighing, measuring volume, barcode scanning, cargo information processing automated logistics automation system, DWS  uses dynamic weighing sensor, intelligent reading code, line laser stereo camera, camera.It has weight acquisition precision, imaging quality,read code performance is strong, intelligent image processing, volume detection precision, fast speed, high efficiency, etc.Its cache section is controlled by servomotor, which can realize frequent start and stop, accurate positioning and short acceleration time, ensuring the reliability and stability of use.

Range of Application:

1. Automatic package processing for the local distribution, transfer and distribution of small and medium-sized stations for warehouse storage, e-commerce and postal systems, or large-scale logistics, express delivery and e-commerce enterprises.Used for barcode scanning, volume detection, and dynamic weight data acquisition;
2. Provide more accurate data information for the settlement and payment of express package freight (such as artificial weightlessness, operational errors, etc.);

3. Reduce and prevent errors (intentional or unintentional human operation errors) in the sorting of goods in the warehouse by e-commerce parcels;
4. Reduce and prevent the parcel from being lost due to artificial maliciously replaced or operation error in the delivery process;
5. Improve the control and automation level of the sorting and distribution process of the parcel warehouse, shorten the processing time and improve the operation efficiency.


The total power
4KW
The running speed
1.5m/s
The power supply
L/N/PE      220V      50Hz
Applicable environment
0-50℃
Relative humidity
15-90%
Overall dimensions
4400mm*1326mm*3160mm
The total weight
1000kg
Supported barcode type
Code 128, Code 39, EAN, staggered 2/5, etc
Accuracy
>99.9%
Read the code ability
Can accurately read fold, dirt, reflection, distortion and other bad bar code
The range of volume testing
150mm*150mm*25-1000mm*1000mm*1000m
The error of volume testing
±5mm
Custom bar code filtering mechanism
Single or more than one pack can be output
Instruction
Irregular parts can be detected
Company Brief

Our company is an enterprise integrating R&D, manufacturing and sales of logistics automation sorting system and equipment, and provides related technical services.On the basis of continuously introducing and absorbing foreign advanced technology and talents, we constantly strive to develop products that meet the transportation sorting of our express delivery industry. With the professional level and mature technology in the field of automation, we are rapidly emerging in express logistics automation equipment.

At the end of 2017, we have completed the production transformation projects of more than 1,000 projects in STO, ZTO, BEST express, Yunda Express, YTO Express, DEPPON Express,TTK express,Sure Express,EMS and other customers.In 2017, our company have won the gold medal entrepreneur certificate issued by the Qidong Municipal Government, and with the support of the municipal government, invested more than 80 million yuan in Qidong, and established the Qidong Yidatong Automation Industrial Park with 45 acres of land. It was put into use at 2018.

Today, we adhere to the principle of "Progressive, Truth Seeking, being rigorous and united", constantly developing and innovating, with technology as the core, quality as life, customer as God, dedicated to providing customers with the most cost-effective products, high-quality engineering design and transformation. The service concept of meticulous after-sales service. With first-class product quality and exquisite technical service,it has receive high praise from users.

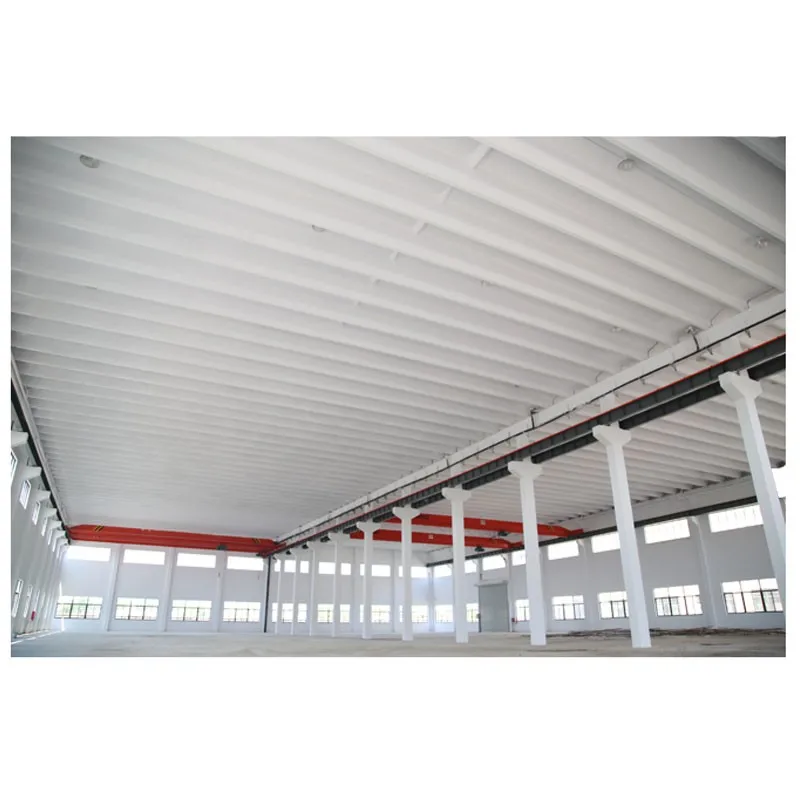

Factory Display
Certifications

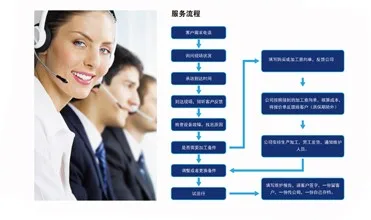

Our Service

Year-round services


Routine maintenance and inspection
Emergency call service
System overhaul
Parts sales and replacement
Other related ancillary services

Pre-Sales Service


* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service


1.Within 12 months from the date of delivery of the equipment by our company and according to our company's use requirements,due to defects in our design, materials, fabrication and workmanship, we promise to repair them  in the shortest time.

2.After the warranty period of 12 months expires, we will sign the maintenance contract with the customer, and the customer will continue to enjoy our supporting services.
